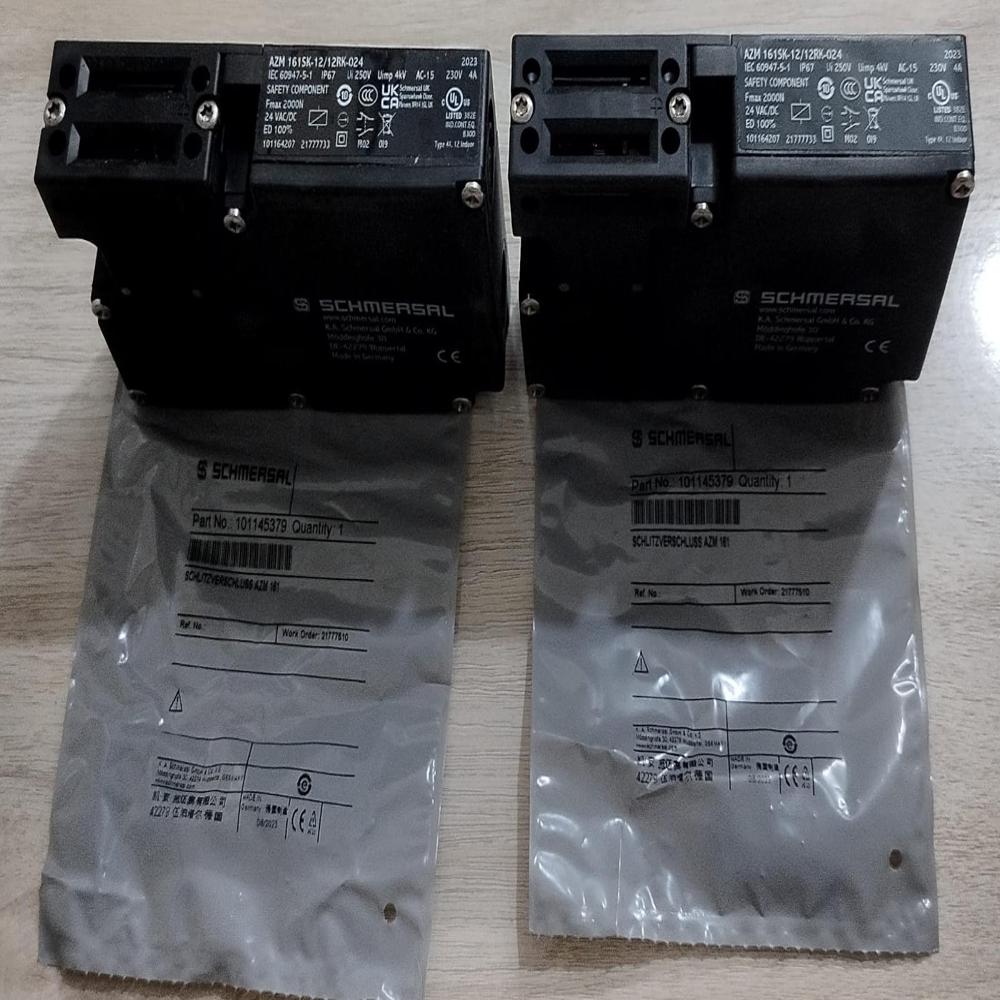

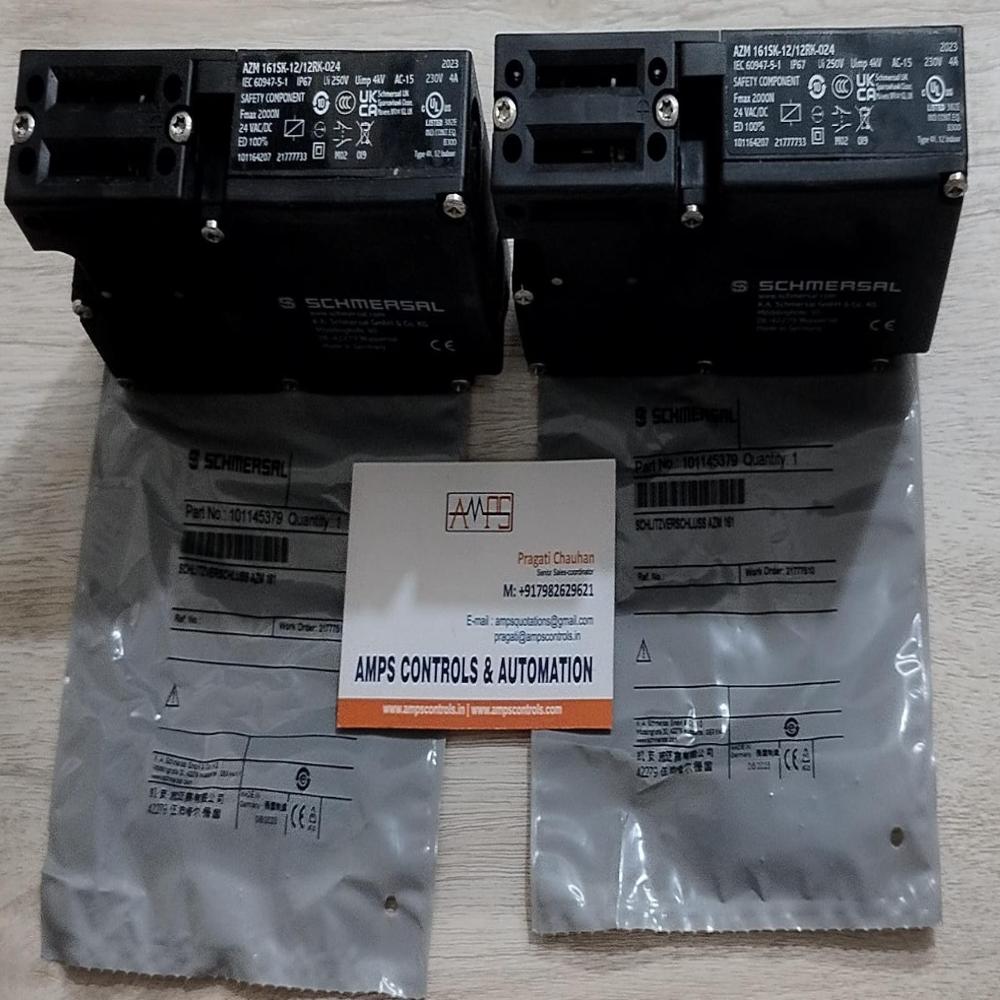

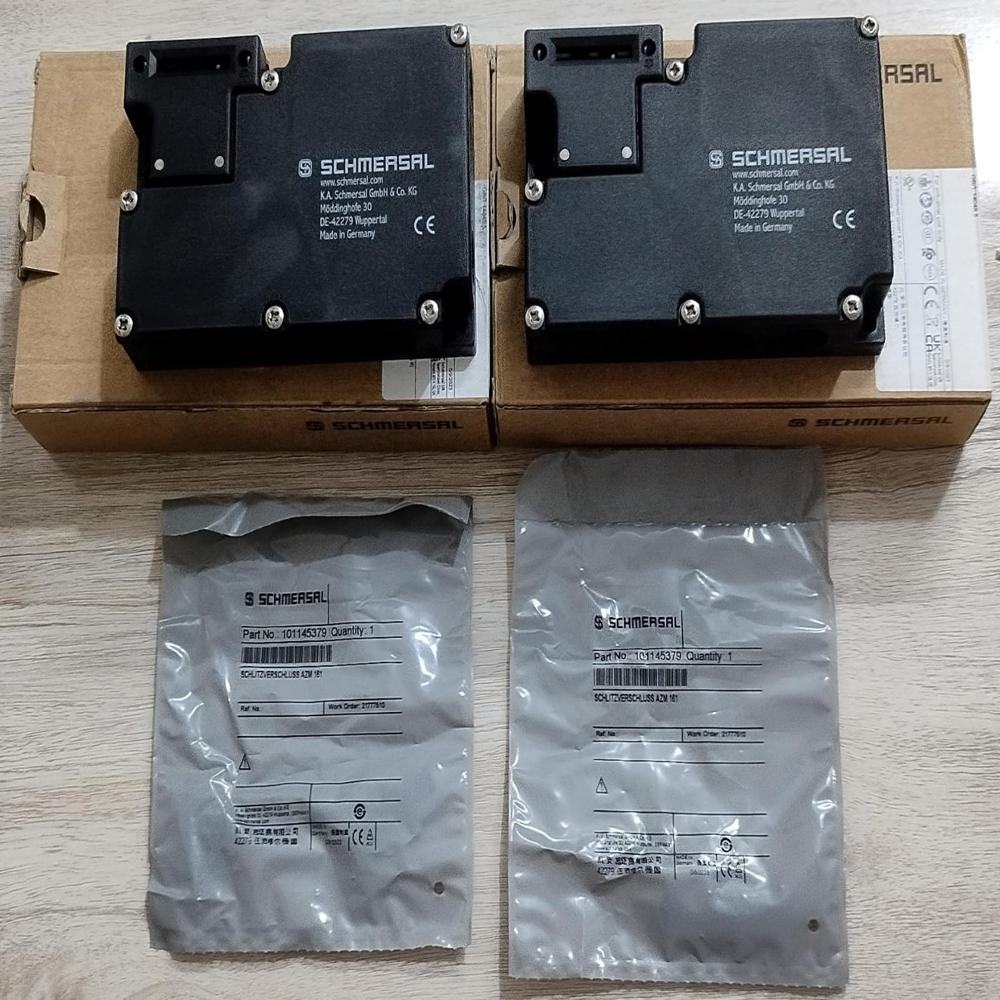

Send InquirySCHMERSAL AZM 161SK-12/12RK-024
SCHMERSAL AZM 161SK-12/12RK-024 Specification
- Automation Grade
- Automatic
- Finish Type
- Smooth
- Product Type
- Limit Switch
- Material
- PVC
- Usage & Applications
- Industrial
- Color
- Black
- Phase
- Single
- Features
- Durable
- Frequency
- 50/60Hz Hertz (HZ)
SCHMERSAL AZM 161SK-12/12RK-024 Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- 2
- Payment Terms
- Cheque
- Supply Ability
- 1 Piece Per Week
- Delivery Time
- 1 Days
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- GOOD PACKAGING
- Main Domestic Market
- All India
- Certifications
- SAFTEY SWITCH
About SCHMERSAL AZM 161SK-12/12RK-024
Our Products & Solutions : EMC EMC NOISE FILTERS , SAFETY SOLUTIONS , MACHINE SAFETY SERVICES ( Services for machine manufacturers and operating organizations ) SAFETY RELAYS, SAFETY DOOR SWITHCHES ,CONTROL PANEL ACCESSORIES POWER SUPPLY , REMOTE I/O , ETHERNET SWITCHES , PATCH CABLES , CONTROL TRANSFORMER.
- Large wiring compartment
- Manual release
- cable entries 4 M 16 x 1.5
- Thermoplastic enclosure
- Double-insulated
- Interlock with protection against incorrect locking.
- 130 mm x 90 mm x 30 mm
- 6 Contacts
- Long life
Mechanical data
| Mechanical lifetime, minimum | 1,000,000 Operations |
| Actuating play in direction of actuation | 5.5 mm |
| Holding force FZh in accordance with EN ISO 14119 | 2,000 N |
| Holding force Fmax, maximum | 2,600 N |
| Latching force | 30 N |
| Positive break travel | 10 mm |
| Positive break force per NC contact, minimum | 10 N |
| Positive break force, minimum | 20 N |
| Actuating speed, maximum | 2 m/s |
| Mounting | Screws |
| Type of the fixing screws | 3x M5 |
| Type of the screw head | Flat head screw |
| Tightening torque of the fastening screws for the housing cover | 0.6 Nm |
| Note | The tightening sequence of the cover screws must be observed. This can be found in the attached drawing in the Pictures tab. |
Mechanical data - Connection technique
| Cable entry | 4 x M16 x 1,5 |
| Termination | Screw terminals |
| Cable section, minimum | 0.25 mm |
| Cable section, maximum | 1.5 mm |
| Note | All indications including the conductor ferrules. |
| Allowed type of cable | solid single-wire solid multi-wire flexible |
Mechanical data - Dimensions
| Length of sensor | 30 mm |
| Width of sensor | 130 mm |
| Height of sensor | 90 mm |
Ambient conditions
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +60 C |
| Storage and transport temperature | -30 ... +85 C |
| Note (Relative humidity) | non-condensing non-icing |
| Protection class | II |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Ambient conditions - Insulation values
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
Electrical data
| Thermal test current | 6 A |
| Rated control voltage | 24 VAC/DC |
| Required rated short-circuit current | 1,000 A |
| Electrical power consumption, maximum | 10 W |
| Switching element | NO contact, NC contact |
| Switching principle | slow action, positive break NC contact |
| Maximale Schalthufigkeit | 1,000 /h |
| Material of the contacts, electrical | Silver |
Electrical data - Magnet control
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 50 ms |
Electrical data - Safety contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 4 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 2.5 A |
Electrical data - Auxiliary contacts
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 4 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 2.5 A |
